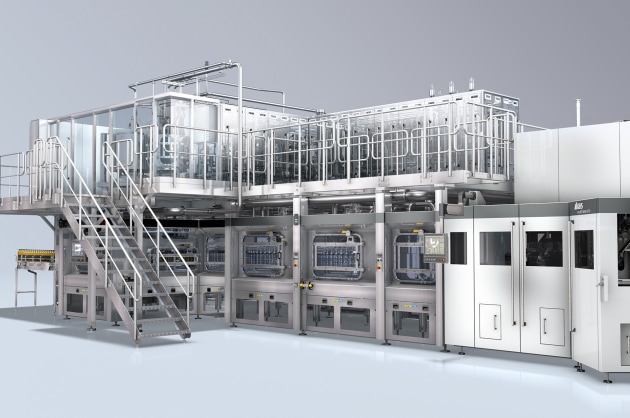

• The InnoPET BloFill ACF-R has a stretch blow molder, sterilisation module, filler carousel and capper installed at ground level. The process technology and valve manifold are arranged above these up on a platform. Image: Christian Sperling
    The InnoPET BloFill ACF-R has a stretch blow molder, sterilisation module, filler carousel and capper installed at ground level. The process technology and valve manifold are arranged above these up on a platform. Image: Christian Sperling
Close×

KHS launched its new aseptic block for bottle sterilisation at Anuga FoodTec, setting better safety and hygiene standards without beverage bottlers having to compromise on performance.

Where maximum safety is of prime concern when filling sensitive beverages into PET bottles, KHS’ linear aseptic fillers have long proved themselves on the market. It’s thus only logical, then, that the Dortmund systems provider is now proud to also present a rotary aseptic filler for higher capacities whose hygienic properties are setting new standards. Here, the machine and systems manufacturer is consciously focusing on bottle sterilisation that – unlike preform sterilisation – can also be combined with the KHS FreshSafe PET coating system that provides additional product protection for sensitive beverages.

In this procedure all potential germs are removed from the containers directly prior to filling. This gives bottlers more flexibility and greater availability during format changeovers than with preform sterilisation, where changing the stretch blow molds disturbs the sterile state of the block. Bottle sterilisation also allows lightweight containers to be gently handled with ease.

New filler design

The new rotary Innofill PET ACF-R filler has been combined with the energy-efficient InnoPET Blomax Series V stretch blow molder. The resulting InnoPET BloFill ACF-R aseptic block currently has a capacity of up to 36,000 1.0-liter bottles per hour as opposed to the linear fillers that work at a maximum rate of 14,000 bottles an hour. In the future the block will even be available with an output of up to 48,000 500-milliliter bottles every sixty minutes. In addition, the new plant engineering achieves a sterility of log 6 inside the bottles – which is equivalent to a reduction in germs of 99.9999%.

During development special attention was paid to the aseptic filler that was completely redesigned. One key feature was to limit the structure to a maximum of four smaller stars for the supply of hydrogen peroxide (H2O2) and activation and drying with sterile air. The stars are used in place of the previous large carousel. The benefits of this simplified technology are lower consumption figures and lower costs for installation and maintenance thanks to the machinery’s modular design and smaller footprint.

High standard of hygiene

The InnoPET BloFill ACF-R is spread out over two levels: at ground level are the stretch blow molder, sterilisation module, filler carousel and two-way servocapper. The process technology with the service module, H2O2 preparation, sterile compressed air production, cap sterilisation unit and valve manifold are up on the platform.

The outsides and insides of the PET bottles are sterilised before they reach the filler’s aseptic zone where the sensitive products are filled into the containers and then sealed on the servocapper. In the hygiene area a measurable positive pressure is formed using sterile air generated by the block itself. This produces a flow of sterile air both in the direction of the bottle sterilisation unit and through the capper to the bottle discharge via an airlock. The containers then undergo quality control (leak and fill level inspection) before traveling on to the dry section of the line.

A large number of fixed nozzles prevents spray shadows from being formed during sterilisation of the bottle exterior. When the bottles enter the interior sterilisation unit, the neck area is also individually sterilised. These have movable arms that insert the spray lances into and retract them from the PET bottles.

Clean machine

Liquid barriers in the filler carousel safeguard the closed hygiene zone from the outside environment. Here, liquid H2O2 in a concentration of around 30% is used, as is water to prevent the hydrogen peroxide outgassing into the atmosphere and thus protecting health and safety. Rinsing sleeves and CIP caps are also no longer required, as the entire aseptic zone is sanitised with caustic and/or acid identical to that used in interior and exterior cleaning. The latter is used to remove mineral residue that could cause critical deposits to build up which in turn would impact the machine’s sterility. The adapted process significantly reduces the CIP time. To minimise consumption, media is collected, fed back into the system and reconcentrated prior to the next CIP cleaning cycle.

Thanks to its flexibility, the modular aseptic filler is suitable for use with various KHS PET filling systems that have also been modified. These vary their speed according to the respective filling phase and determine the fill level using flow metering. The current standard comprises valves with a free-flow system for the still beverages normally filled on aseptic equipment. Alternatively, systems can be used that are able to process fibers and pulp. In the future, the machinery is also to be capable of the sterile filling of carbonated products such as fruit juice spritzers.

Numerous highlights

Like the filler carousel, the capper that also works in an aseptic environment has a double gas lock to ensure optimum encapsulation. The caps stacked in rows are transported to the compact aseptic zone for sterilisation. They are subsequently sterilised inside and out from all sides with vaporised H2O2 on a kind of revolver system and activated and dried. They are then passed down to the capper below in a closed infeed.

A further highlight of the new rotary block to be its automatic format changeovers which, provided the bottle neck remains the same, renders manual operator intervention superfluous, thus retaining the internal sterility. This saves the filler module having to run through a full cleaning and sterilisation cycle. At a press of a button on the HMI, within the space of just three minutes various servomotors adjust cams in the filler infeed and discharge, the bottle base guide in the capper and the railings, for instance. Expansion joints and steam barriers are used to maintain sterility. If the bottle neck diameter needs to be changed, this can be done manually as an option.
