Low speed ratios, high powers

The NORD MAXXDRIVE XT industrial gear units are tailored to applications where high powers with low speed ratios are required.

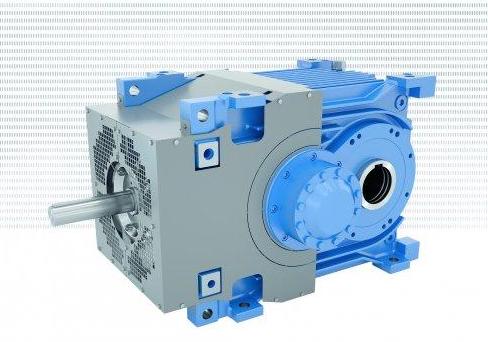

The power and speed ranges of the two-stage right-angle gear unit have been specially designed for industries in which low speed ranges are required in combination with high powers. Its design makes the MAXXDRIVE XT resistant to dirt and reliable in rough operating conditions. A special sealing concept reduces maintenance, and large roller bearings and centre distances increase the load capacity and service life of the components.

Features such as hydraulic couplings tailored to the particular process or Taconite seals, which effectively protect radial shaft seals against abrasive dust and corrosion, ensure smooth operation.

It provides output torques of 15 to 75 kNm with speed ratios from 6.3 to 22.4 and is offered in seven sizes for powers from 22 to 2,100 kW. As standard, the industrial gear unit is equipped with a heavily ribbed UNICASE housing and an integrated axial fan.
