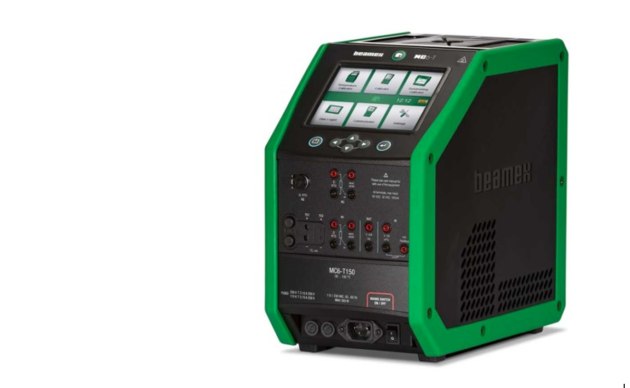

The MC6-T from Beamex offers the ability to measure and simulate temperature and electrical signals, and has pressure calibration capabilities and field communicator functionality in one device.
Designed for industrial use, the MC6-T is designed for demanding industrial environments. It is designed to minimise the effects of varying environmental conditions, typical in process industry field conditions. It is also designed to minimise the effects of any mains voltage fluctuations, and it remains very stable in spite of changes in AC mains power voltage. The active multizone temperature control technology ensures an excellent temperature gradient and compensates for the heat loss caused by the temperature sensors installed in the insert.
Other features include:
Enhanced usability
The MC6-T offers a large 5.7-inch backlit multilingual colour touch screen user interface that can be easily used with bare fingers, gloved hands or any stylus. Direct numerical and QWERTY keyboards make it very easy and fast to enter data. There is no need to use clumsy arrow keys to enter a set point, just enter the temperature set point value.
Extensive process calibrator functionality
The MC6-T also includes a built-in multifunctional process calibrator, based on the Beamex MC6 technology. The process calibrator can calibrate temperature, electrical and pressure signals. It can also simulate RTD and thermocouples signals, for calibrating temperature transmitters and other temperature instruments. It can also measure and generate various DC electrical signals.
Digital transformation of calibration processes
MC6-T is a documenting calibrator and communicates with calibration software. This enables a digitalized and fully paperless calibration process. When the whole calibration process is electronic and paperless, it saves time and reduces the risk of errors.
Built-in Field Communicator
MC6-T includes a field communicator for HART, FOUNDATION Fieldbus H1 and Profibus PA instruments. With the help of the built-in communicator, you can calibrate, configure and trim/adjust your smart instruments with a single MC6-T without the need to carry a separate field communicator with you.
Short and sanitary sensor calibration
The MC6-T150 is designed so that it enables the calibration of short and flanged sanitary sensors. This is typically not possible with traditional temperature dry-blocks. MC6-T150 can be provided with a dedicated insert used together with a special short reference sensor with flexible cable, enabling the calibration of short sensors.
